PCI Express digital I/O cards isolated (optocoupler and relais)
OPTOIO-PCIe16STANDARD
- 16 optocoupler inputs
- 16 optocoupler outputs
- Board-identification
EDP number: A-829200
Datenblatt deutsch PDFDatasheet english PDF
Handbuch deutsch PDF
Manual english PDF
Software for download
Price and accessories
OPTOIO-PCIe16ULTRA
- 16 optocoupler inputs
- 16 optocoupler outputs
- 16 configurable digital input filters
- 16 interrupt inputs
- 16 counters 32Bit
- 2 timers with quartz time base interruptible
- 2 OC units (PWM function)
- 2 IC units (period, pulse duration measurement)
- Status display 2 x 16 LED
- Board identification
EDP number: A-829410
Datenblatt deutsch PDFDatasheet english PDF
Handbuch deutsch PDF
Manual english PDF
Software for download
Price and accessories
OPTOIO-PCIe32STANDARD
- 32 optocoupler inputs
- 32 optocoupler outputs
- Board identification
EDP number: A-840600
Datenblatt deutsch PDFDatasheet english PDF
Handbuch deutsch PDF
Manual english PDF
Software for download
Price and accessories
OPTOIO-PCIe32ULTRA
- 32 optocoupler inputs
- 32 optocoupler outputs
- 32 configurable digital input filters
- 32 interrupt inputs
- 32 32-bit counter
- 2 timers with quartz time base interruptible
- 2 OC units (PWM function)
- 2 IC units (period, pulse duration measurement)
- Board identification
EDP number: A-840810
Datenblatt deutsch PDFDatasheet english PDF
Handbuch deutsch PDF
Manual english PDF
Software for download
Price and accessories
OPTOIN-PCIe32STANDARD
- 32 optocoupler inputs
- Board identification
EDP number: A-844600
Datenblatt deutsch PDFDatasheet english PDF
Handbuch deutsch PDF
Manual english PDF
Software for download
Price and accessories
OPTOIN-PCIe32ULTRA
- 32 optocoupler inputs
- 32 configurable digital input filters
- 32 interrupt inputs
- 32 32-bit counter
- 2 timers with quartz time base interruptible
- 2 IC units (period, pulse duration measurement)
- Board identification
EDP number: A-844810
Datenblatt deutsch PDFDatasheet english PDF
Handbuch deutsch PDF
Manual english PDF
Software for download
Price and accessories
OPTOOUT-PCIe32STANDARD
- 32 optocoupler outputs
- Board identification
EDP number: A-846600
Datenblatt deutsch PDFDatasheet english PDF
Handbuch deutsch PDF
Manual english PDF
Software for download
Price and accessories
OPTORE-PCIe16STANDARD
- 16 optocoupler inputs
- 16 relay outputs 1 A
- Board identification
EDP number: A-822200
Datenblatt als PDFDatasheet english PDF
Handbuch als PDF
Manual english PDF
Software for download
Price and accessories

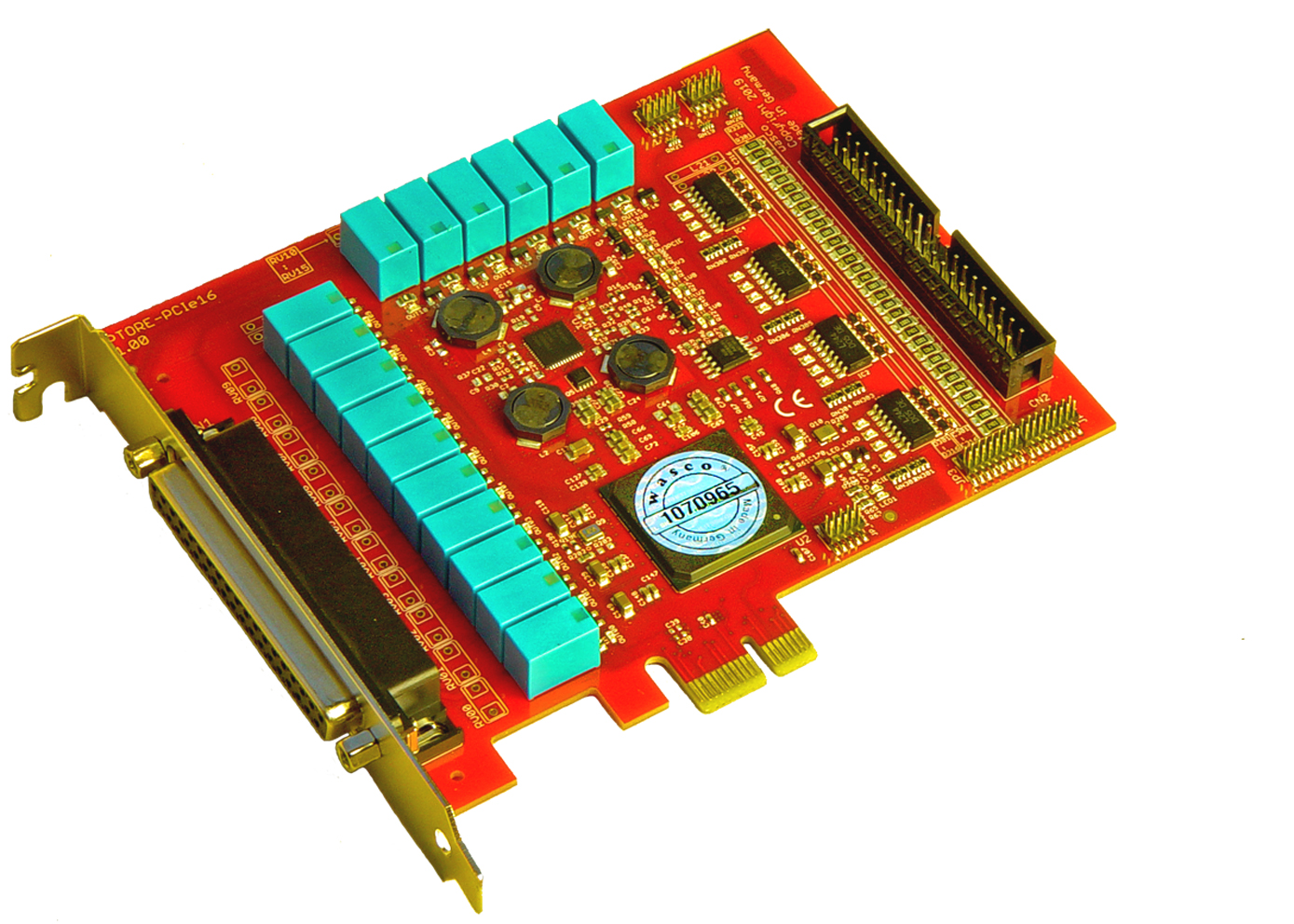

OPTORE-PCIe16ULTRA
- 16 optocoupler inputs
- 16 relay outputs 1A
- 16 configurable digital input filters
- 16 interrupt inputs
- 16 counters 32Bit
- 2 timers with quartz time base interruptible
- 2 IC units (period, pulse duration measurement)
- Status display 2 x 16 LED
- Board identification
EDP-number: A-822410
Datenblatt als PDFDatasheet english PDF
Handbuch als PDF
Manual english PDF
Software for download
Price and accessories
OPTOPRE-PCIe8STANDARD
- 8 optocoupler inputs
- 8 relay outputs 2 A
- Board identification
EDP number: A-823600
Datenblatt als PDFDatasheet english PDF
Handbuch als PDF
Manual english PDF
Software for download
Price and accessories
OPTOPRE-PCIe8ULTRA
- 8 optocoupler inputs
- 8 configurable digital input filters
- 8 interrupt inputs
- 8 counters 32 bit
- 2 timers with quartz time base
- 2 IC units (period, pulse duration measurement)
- 8 relay outputs 2 A
- 3 optocoupler outputs
- 2 OC units (PWM function)
- Status display 2 x 8 LEDs
- Board identification
EDP-number: A-823810
Datenblatt als PDFDatasheet english PDF
Handbuch als PDF
Manual english PDF
Software for download
Price and accessories
PCI Express - isolated inputs and outputs for the PCIe bus from Messcomp®
What is galvanic isolation?
The term galvanic isolation or potential isolation meansavoiding lines between two circuits. An exchange of signals between the two circuits takes place via electrically non-conductive coupling elements. The potential separation is mainly used on PC cards to protect the computer and to avoid interference (current loops, ...).
PCI Express PC cards with galvanically inputs and outputs
The wasco® PCI Express cards from the Messcomp® with galvanic isolation are suitable for all applications from laboratory operation to harsh industrial environments. The isolation between the input signals and the PC is ensured with these cards via optocouplers and relays in various designs, from sensitive input optocouplers to resilient output optocouplers, from signal relays to power relays. With various combinations of optocouplers and relays on the PC cards, you can implement your control cost-effectively.
